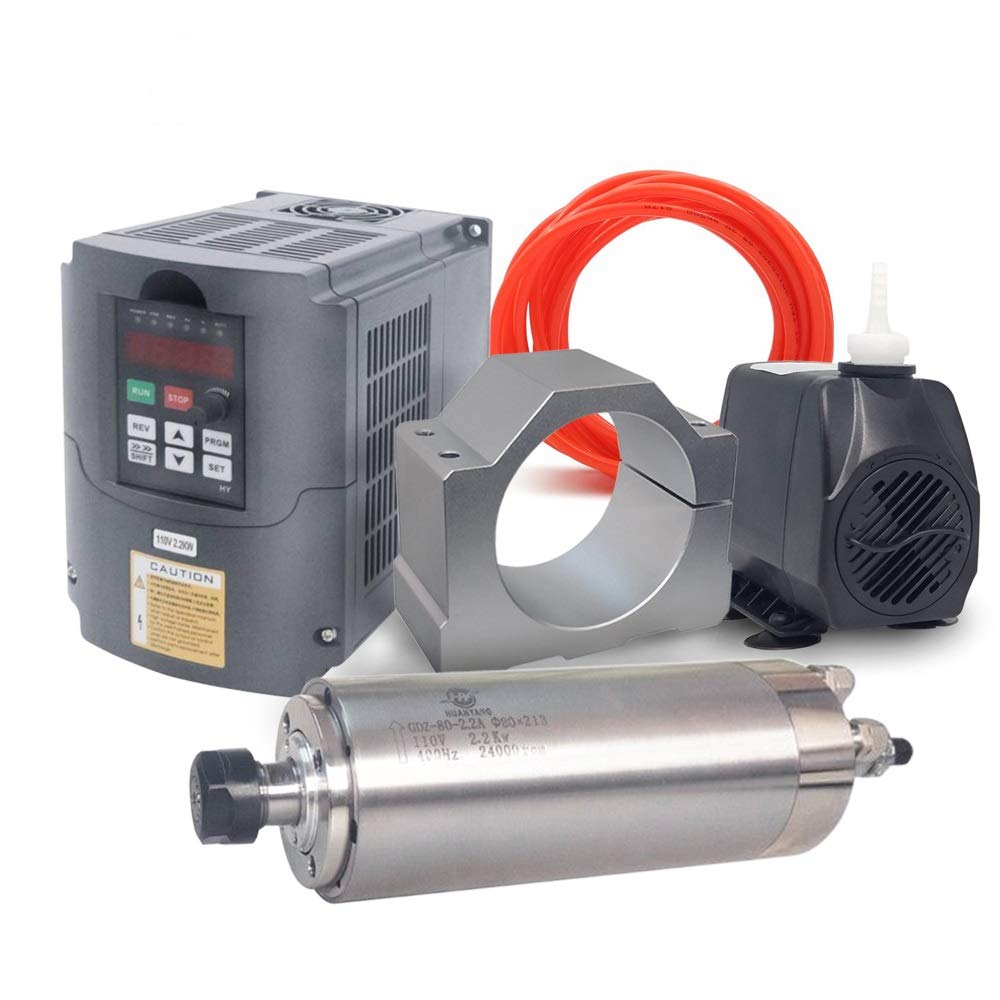

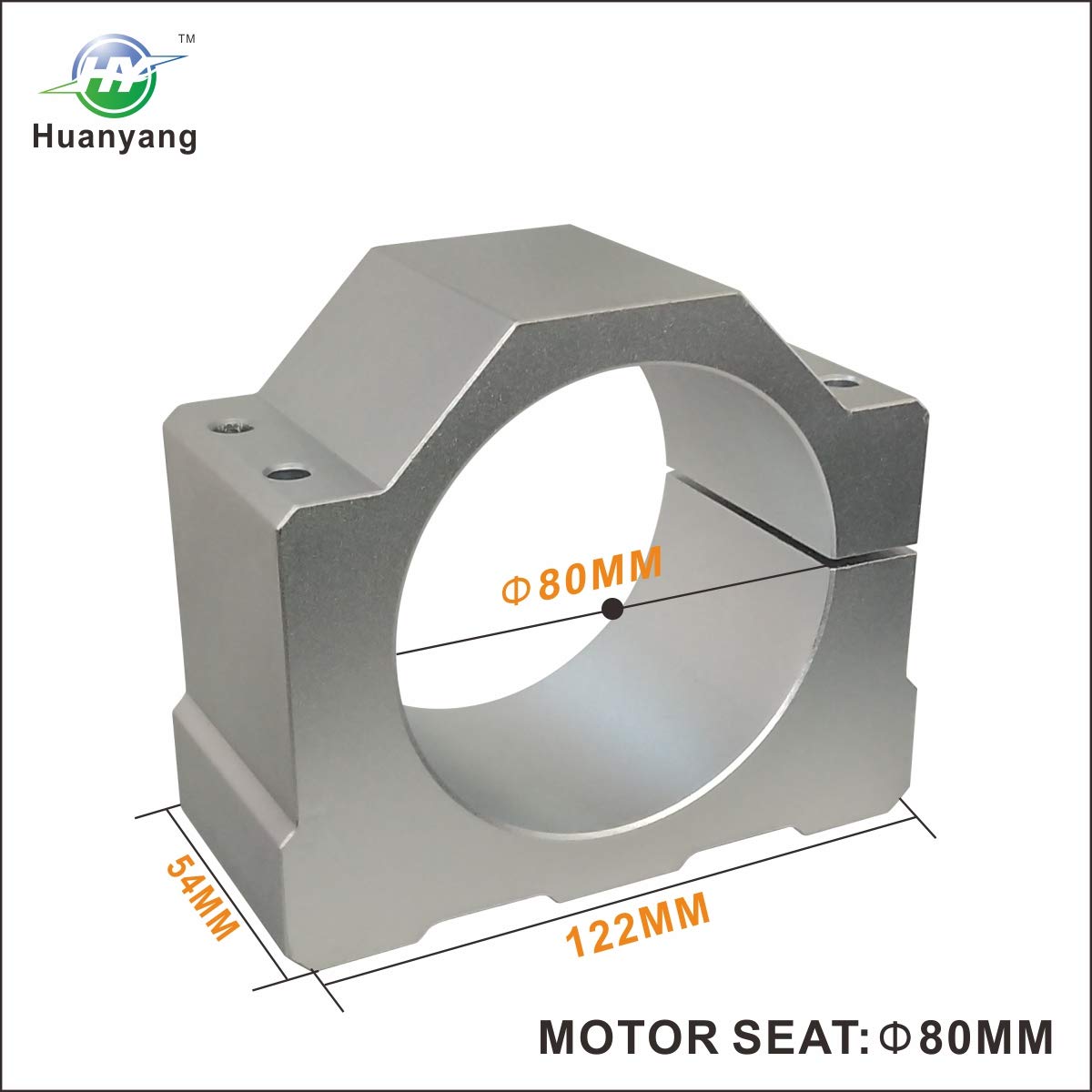

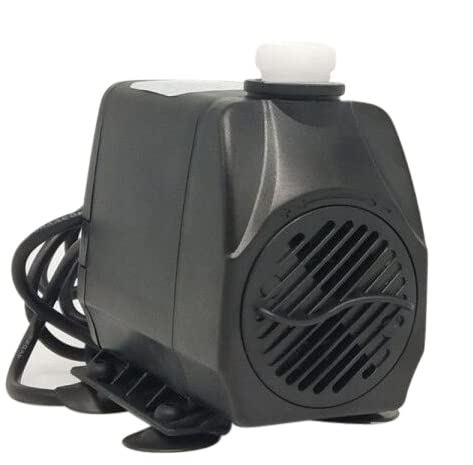

Packaging includes 1 x vfd and spindle 1 X 110v input 2.2kw vfd （comes with a manual）1 X water Cooled 110V-2.2KW 4bearings Φ80mm 400hz spindle (come with a 6mm collet) 1 x 80mm motor clamp Adopt high quality aluminum,the surface is oxidized polished, very smooth,safe to use.the accuracy is much higher , and it is hard to deform 1 x 110v water pump AC:110v-120V/50HZ 75W Hmax:3.2 QmaxFlow Rate:3200L/H Waterproof Grade:IPX8Easy to detach and cleanDesigned with a adjusting knob, allowing to adjust the water flow rate.Rubber suction cups can be a good fit in the glass surface, to help keep it stability. 1 x 5m hose 5 meter length hose, outer diameter 8mm, inner diameter 6mm VFD specifications Power:2.2KWHorsepower:3HPInput voltage: 1 phase 110V(±15%)Output voltage:110V 3 phaseInput Frequency: 47-63HzOutput frequency:0-50/60hz 0-400hzRated current:20A (Represents the maximum current the VFD can withstand) Spindle specifications Bearing: 7005 (2pcs)and 7002(2pc) bearingsVoltage and rated current: AC 110V, 20AOperating speed:8000rpm-24000rpmRadial runout:≤0.025mm clamping mandrel vibrates at 30mm to nutFrequencies: 400HzSize:80*238 (mm)Collet: ER20 collet, 6mm is standardNut model: ER20-A(B) Establish a connection The single-phase input wire is connected to the R and T terminals, and the motor output wire is connected to the UVW terminal of the VFD.Basic parameters for 400hz spindle：pd013=8，pd005=400,pd004=400 pd003=400 pd072=400，pd144=3000, pd002=1 pd070=1，pd008=110 (All VFD parameters are set before delivery,so you can connect and drive directly after you receive the kit) VFD function introduction Diverse terminals, more functions for you to choose. Supports external potentiometer control (connect the "FOR" and "DCM" terminals,than set PD001=1)Supports mcah3 function and RS-485 communication(For more information, you can contact the seller, we will send you a video of the basic functions of VFD) Key Function UP: Progressively increase data or function codes.DOWN: Progressively decrease data or function codes.SET: Enter menus step-by-step, save setting parameters.PRGM: Exit current(or present) state, switch among each states, mainly used to switch monitoring state, exit to previous menu.FWD/REV: 1, Press momentary button to start,release to stop; 2 Switch the rotation directionSHIFT: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position.Kindly Note: If you want to show RPM in the display,please press 'SHIFT' key Advanced motherboard features PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitabilityEasy PLC function can realize 16 legs of speed and inverter control functionRS485 communication port, adopting standard international MODBUS main circuit controlWith extremely strong anti-jamming capabilityLow output ratting torque0.5HZ-150%, low speed running abilityCarrier adjustable by 16KHZ, completely soundless working environmentBroad voltage working area, normal running in 304V-456VAuto voltage regulation (AVR) technique, for ensuring the inverter load capabilityWith perfect error protection and short circuit starting protection capability Spindle introduction 4 high precision bearings With 4 high-precision bearings, high precision and strong torque are guaranteed Aviation connector Power interface: YX20 water proof aviation plug marked with number 1, 2, 3, 4. Number 1, 2 and 3 inter-faces are connected with inverter power U, V, W respectively. Number 4 is connected with earth wire 80mm spindle clamp High accuracyPowerful clamping effectExcellent elasticity
